Date: 14 Apr, 2026
Technical Data Sheet (TDS)
PVC Floor Marking Tape – Industrial Grade
Product Name: PVC Floor Marking Tape
Compliance: RoHS, REACH, ISO 9001
Product Overview:

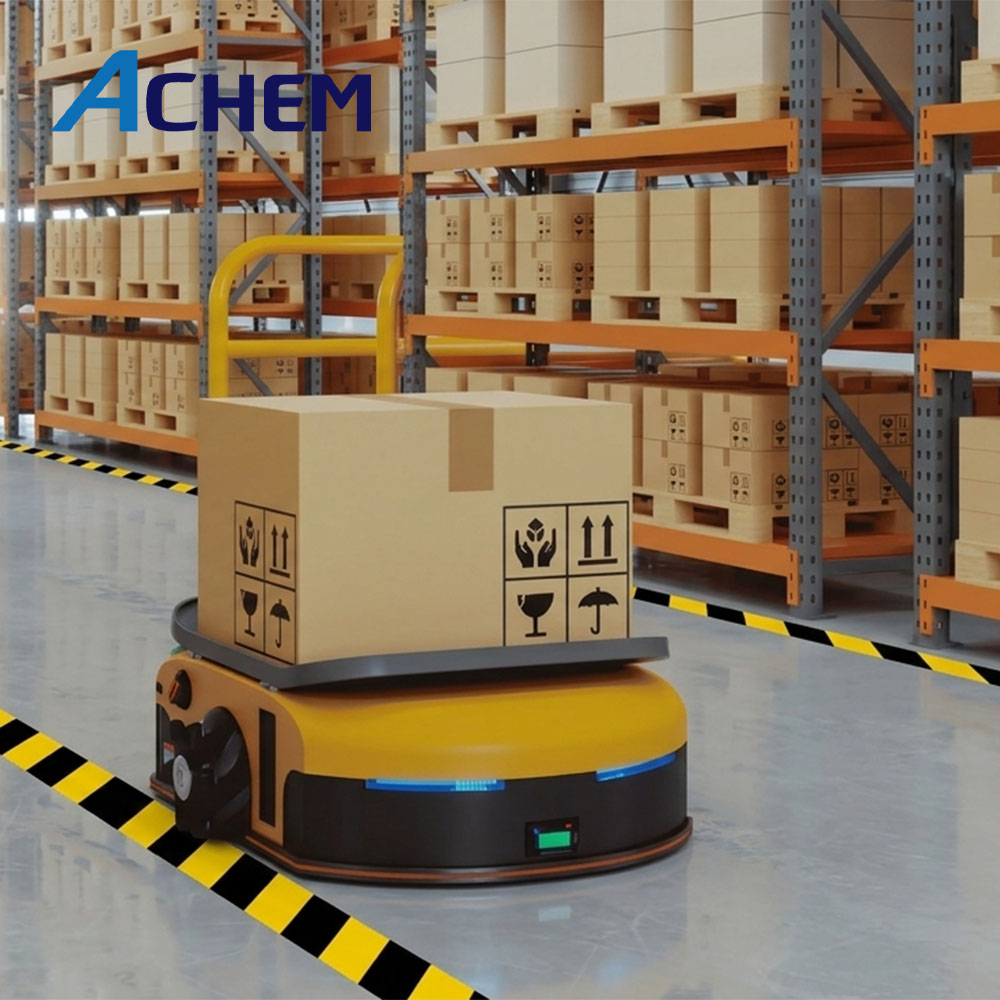

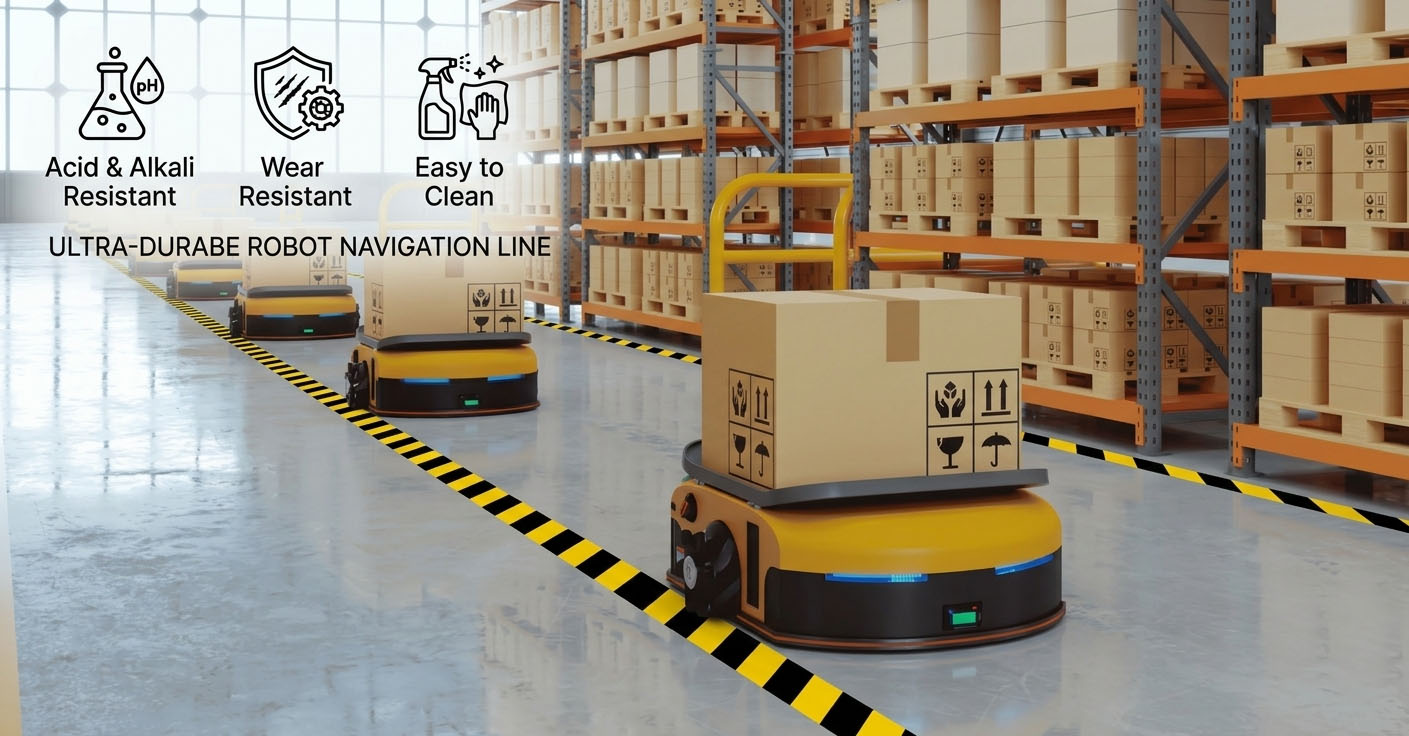

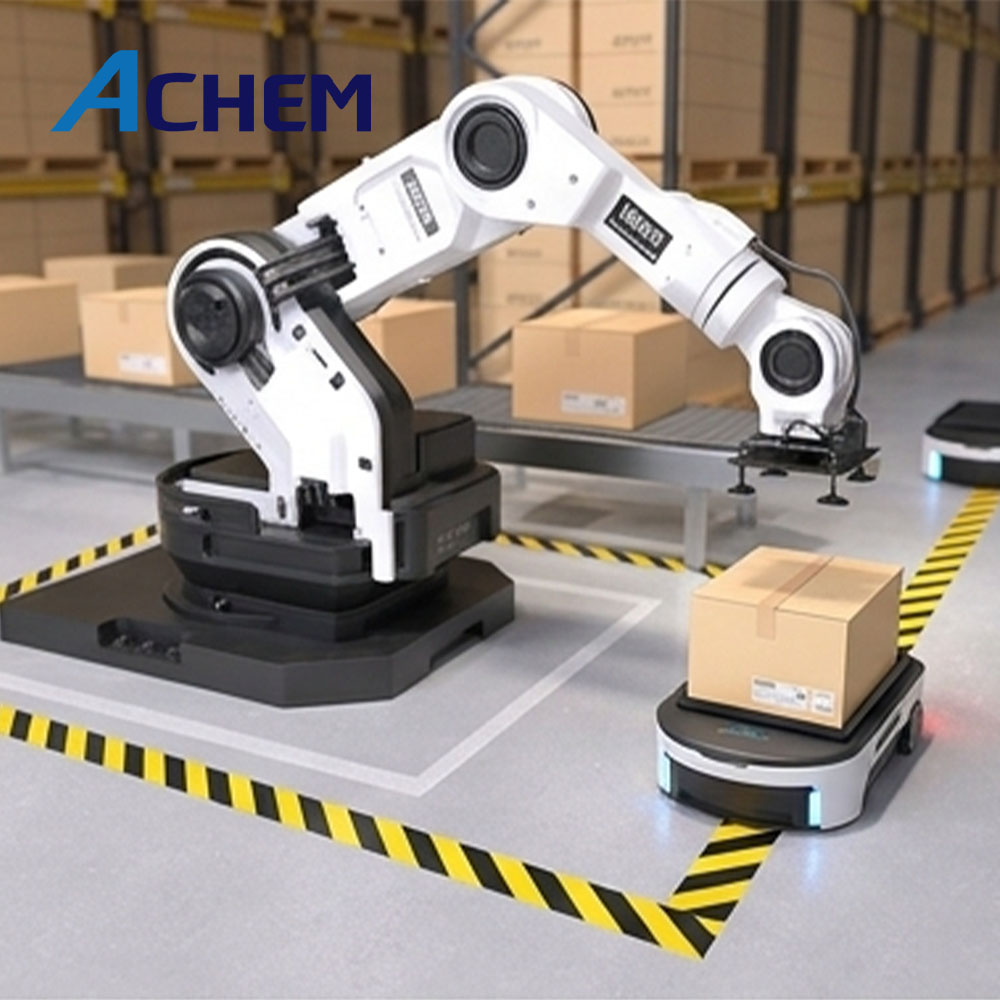

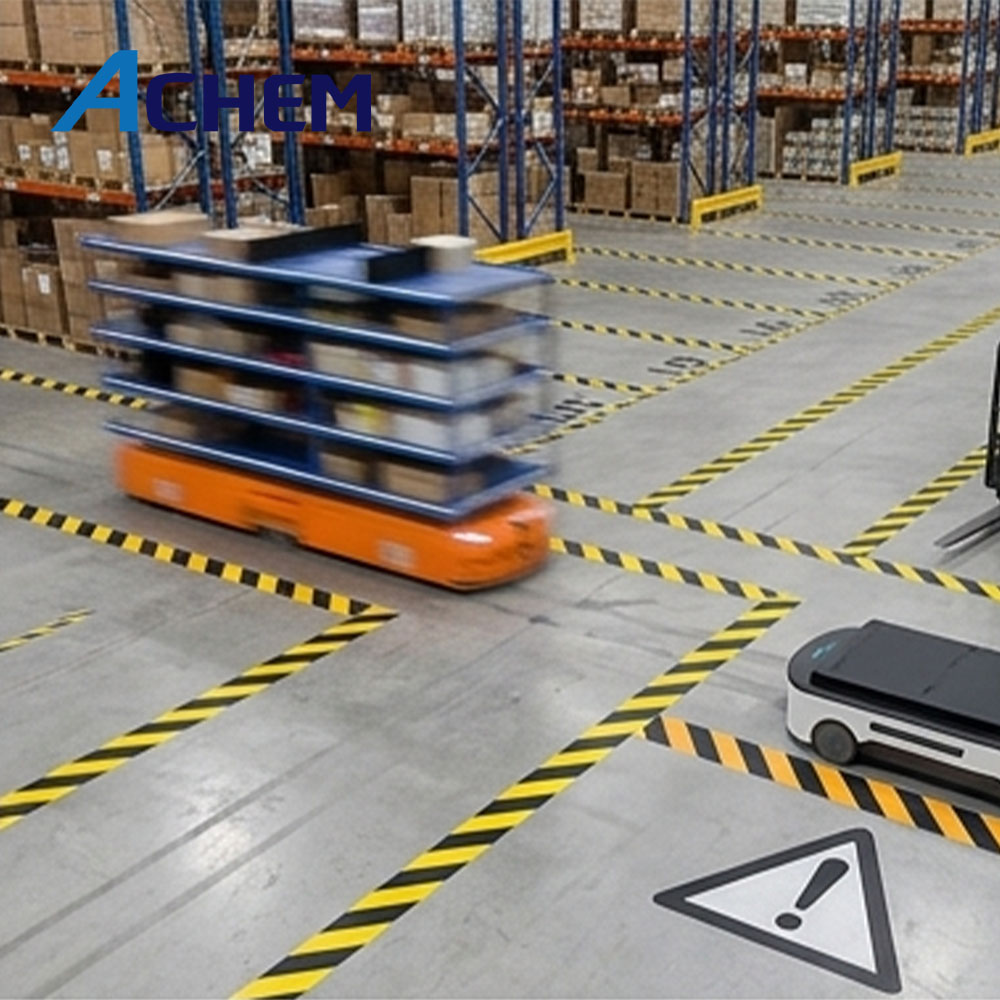

PVC Floor Marking Tape 0.23 mm coated scratch-resistant, easy-to-clean warning area marking tape for unmanned warehouse marking and robot path marking. Heavy‑duty single‑sided pressure‑sensitive tape made from flexible PVC film with strong rubber‑based adhesive. Designed for Robot marking, permanent/semi‑permanent floor marking in warehouses, factories, workshops, and commercial spaces. Provides high visibility, abrasion resistance, and reliable adhesion to concrete, epoxy, tile, and vinyl floors.
Material Specifications:
Backing Material: Flexible Polyvinyl Chloride (PVC) Film
Adhesive Type: Rubber‑based Pressure‑Sensitive Adhesive (PSA)
Total Thickness: 0.23 mm
Standard Widths: 48 mm, 50 mm, 75 mm (custom available)
Standard Lengths: 33 m, 66 m (custom available)
Core Size: 3‑inch (76 mm) paper/plastic core
Abrasion Resistance: Excellent (forklift/foot traffic compatible)
Water & Chemical Resistance: Good (resists oils, detergents, mild chemicals)
Service Temperature Range: −10 °C to +80 °C

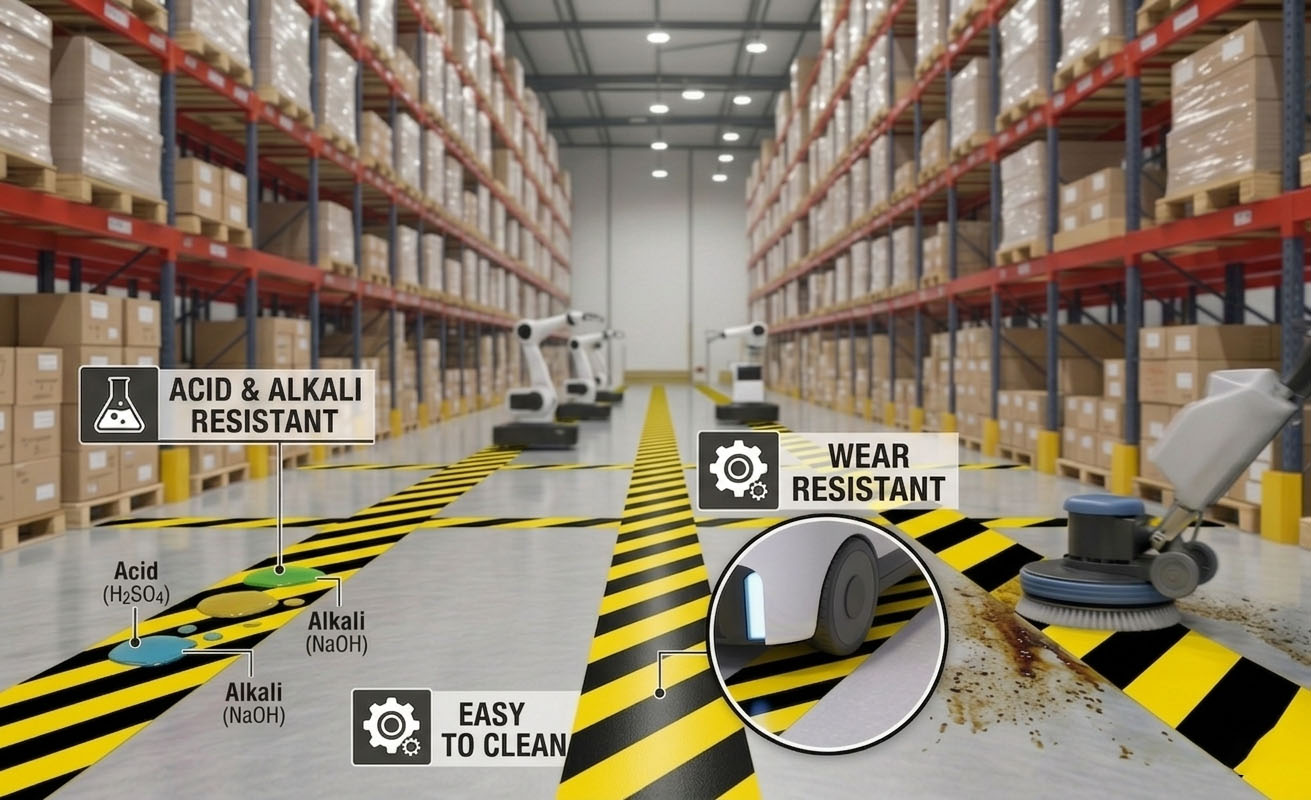

Acid & alkali resistant, wear resistant, easy to clean.
Color Options:
Solid: Yellow, Red, Blue, Green, Black, White, Orange

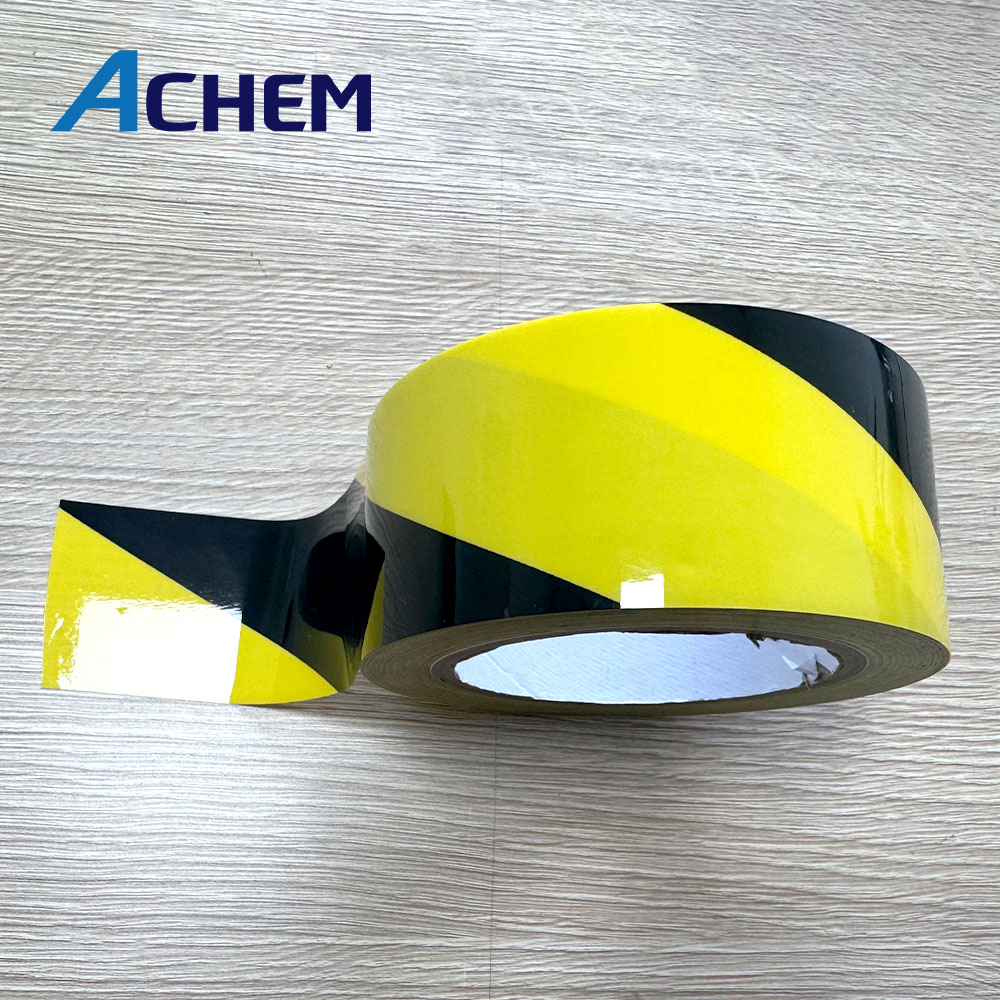

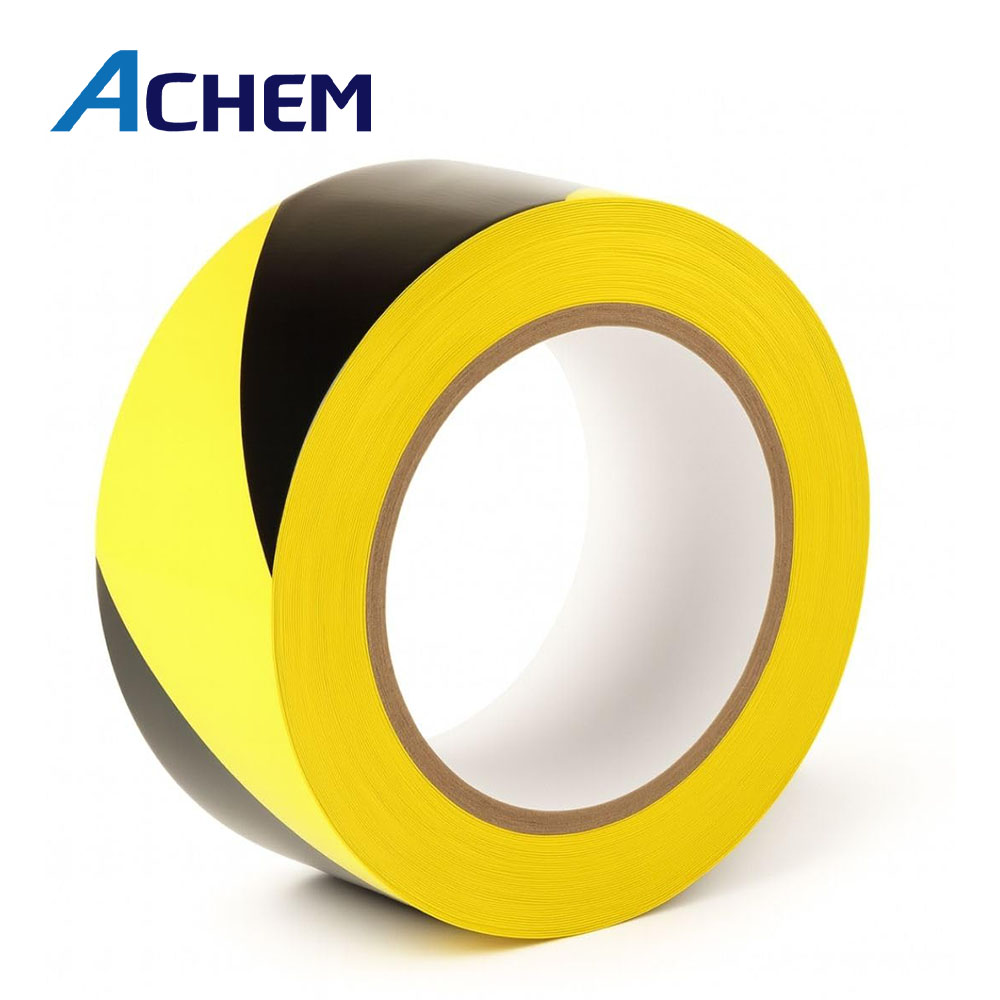

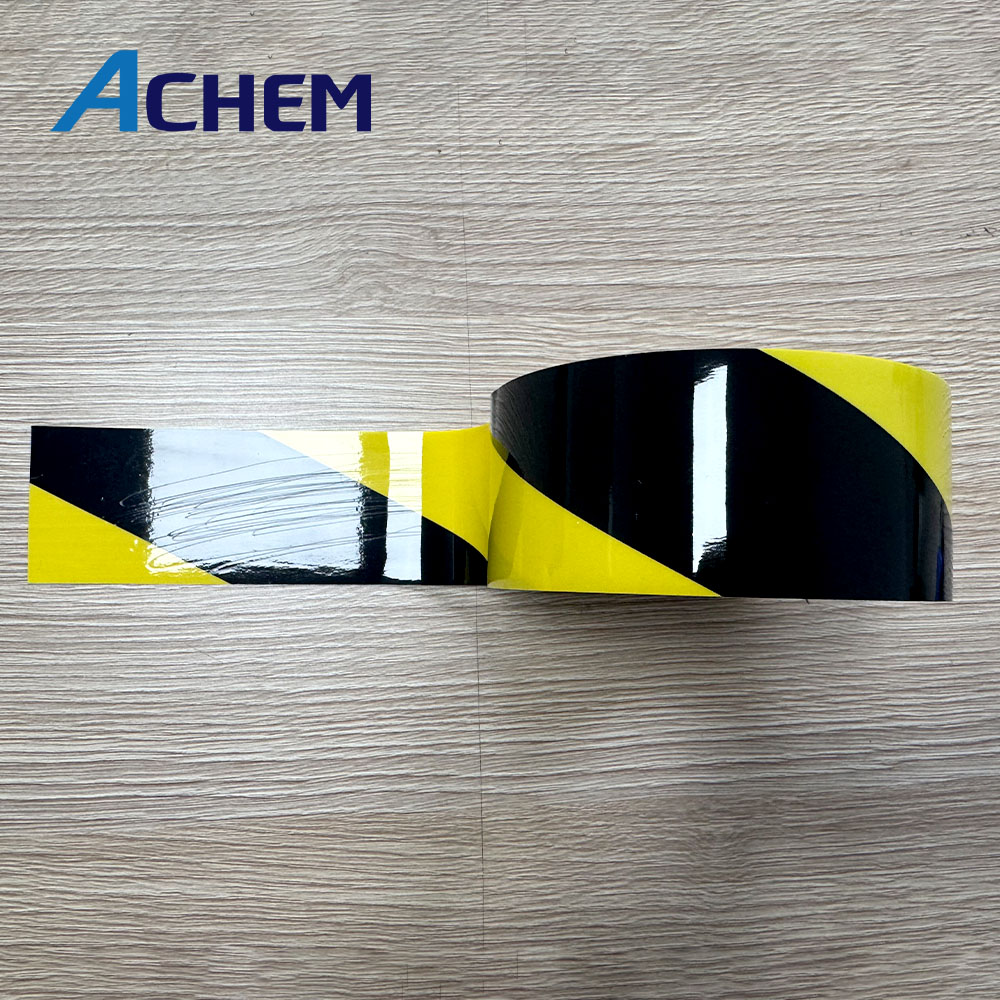

Striped: Yellow/Black, Red/White (hazard warning)
Custom colors/patterns available upon request.
Key Features & Benefits:
High‑contrast colors for maximum visibility;
Flexible PVC backing conforms to uneven floors;
Strong initial tack & long‑term holding power;
Resists scuffing, peeling, and fading under heavy use;
Easy to apply; no drying time required;
Clean removal (low residue) on most surfaces (grade‑dependent);
Acid & alkali resistant, wear resistant, easy to clean;
RoHS & REACH compliant for industrial safety.
Note: The physical properties shown are tested by ASTM D1000 or our own procedures, it is recommended that the buyer determine the suitability for his own purposes.
Storage: Please store in a moderate temperature and humidity environment and a cool, dry place, avoiding direct sunlight and moisture. The shelf life is one year from the date of shipment.
ACHEM is the first PVC tape producer in Taiwan. As the first to develop solvent acrylic BOPP tape, it is known internationally as the leading manufacturer in the world for formulating and coating of various grades of acrylic adhesives.
Our Products Have BSCI, TUV, ISO14001, ISO9001, OHSAS 18001 Certificates And Some Patents, You Can Trust Our Professionalism And Product Quality.
You need to provide the length, width, thickness and quantity of the product. We will provide you with the best price through the information you provide.
Yes, your own private logo/ label can be printed on the packaging upon your legal authorization, we support OEM service according to our clients' requirement for many years.
Yes, You can customize the products' shape, printing, material, thickness, size,etc. We have strong R&D team here to help.
We will ship within 7-15 days of receiving the deposit.
